A purpose-built camera system with 61 MP full-frame detail, onboard intelligence, and workflow-integrated sensing for sharper, more consistent inspection data.
DEVELOPED IN-HOUSE FOR INSPECTION WORKFLOWS
Critical Infrastructure Deserves Evidence You Can Trust.
Every inspection comes down to one question: can you see what is actually on the structure? A slightly soft focus. Brightness that shifts across the asset. A stitched view that does not hold together. These are not just technical imperfections. They are the moments when a decision becomes a guess. SIGHT was built to remove that uncertainty. Consistent focus across every shot. Even brightness across the full asset. Image quality that makes the review process faster and the decision more defensible.
Designed Around What Inspection Actually Demands
See every shot as it happens. Confirm coverage before the drone lands. SIGHT combines a 61 MP full-frame sensor, a Time-of-Flight distance sensor, and onboard compute to deliver sharp, consistent image sets across the full asset.

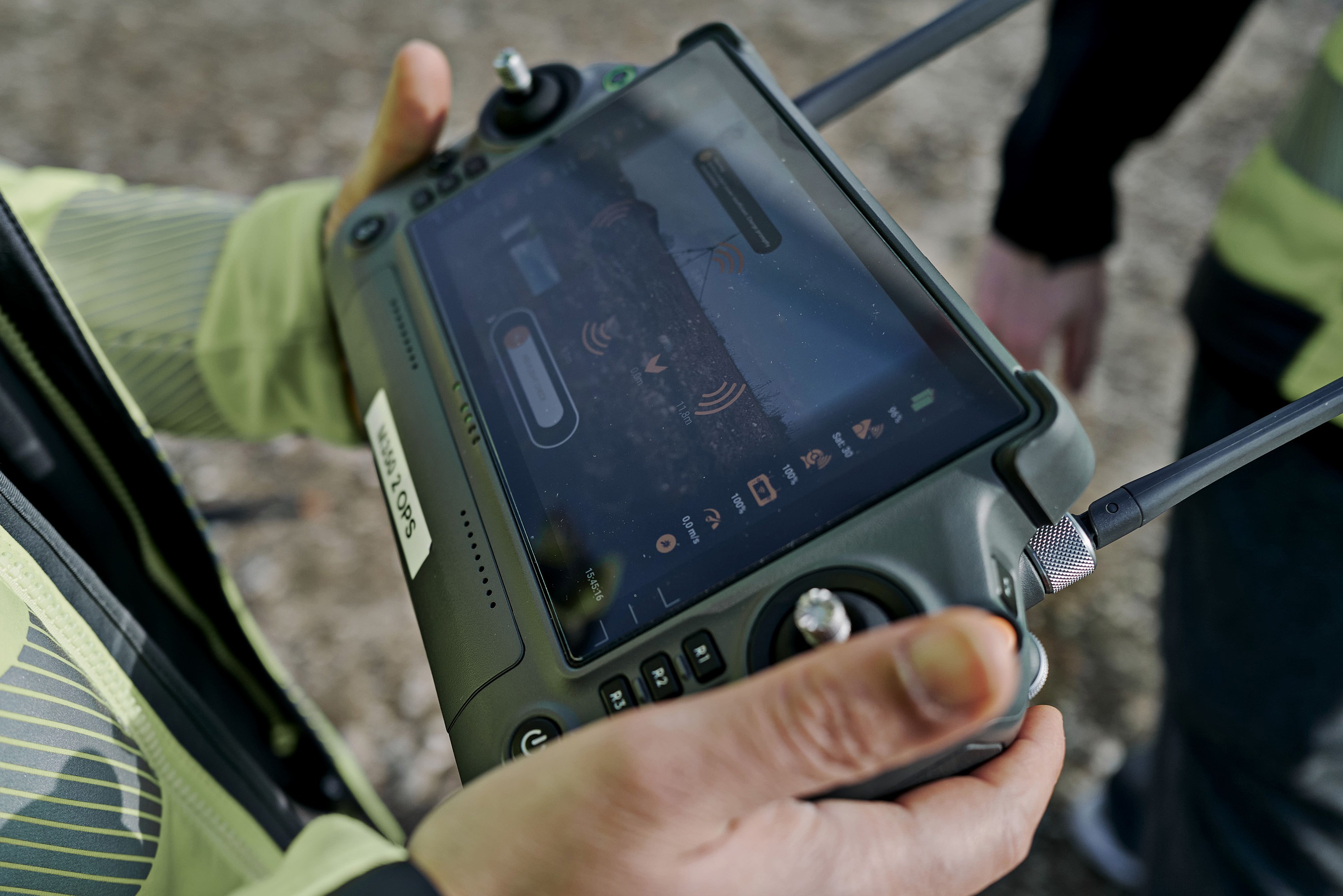

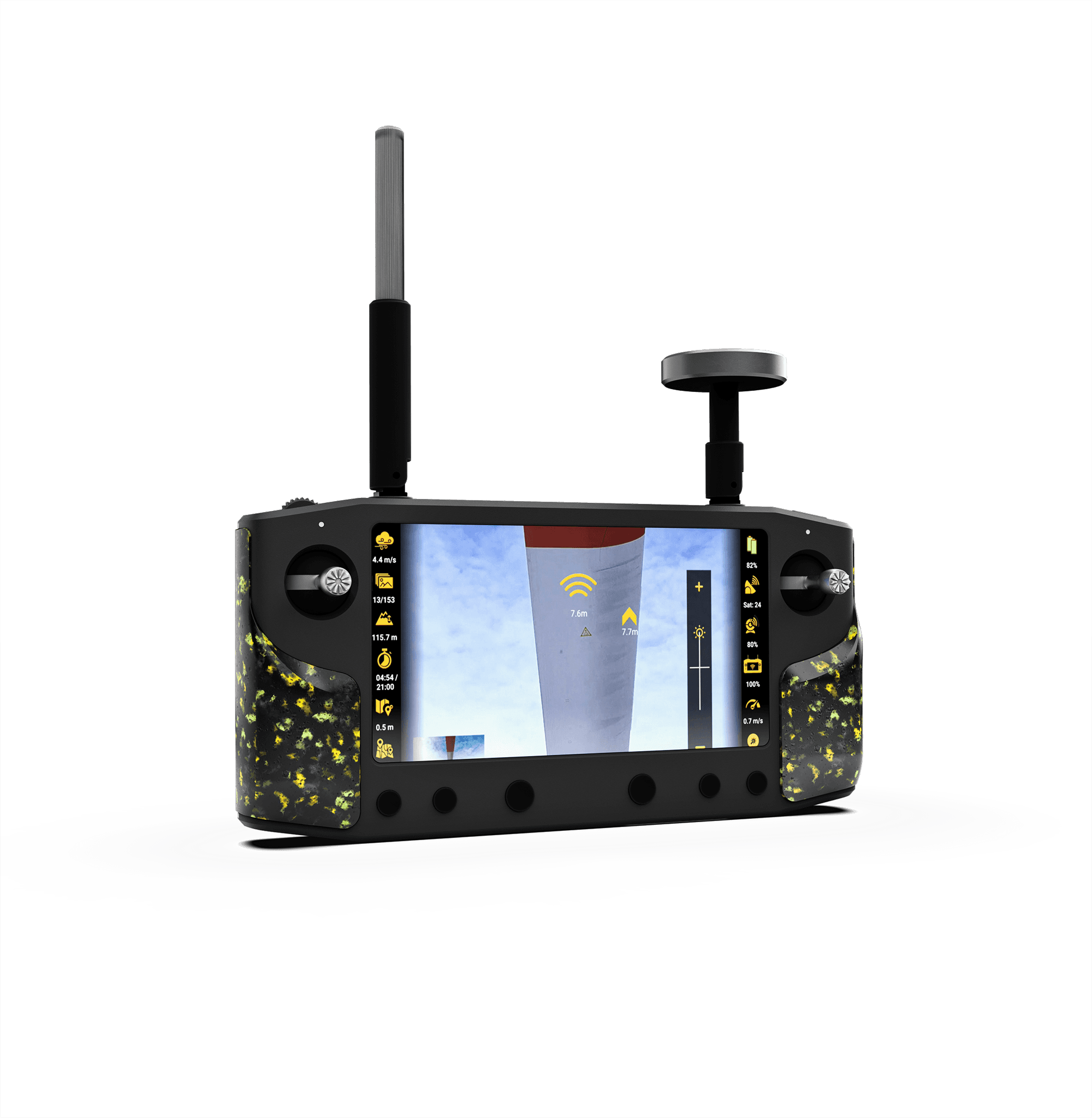

Live View

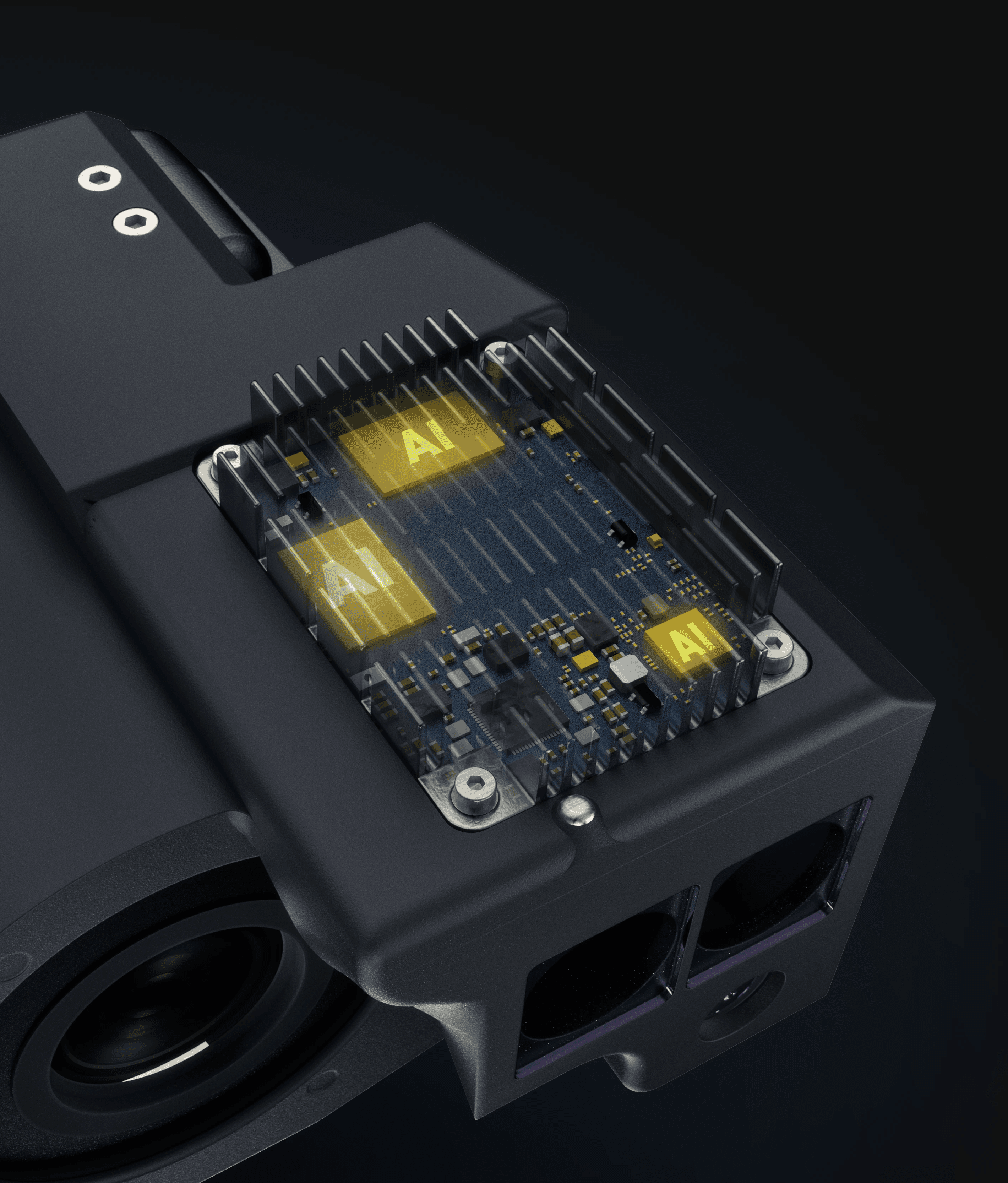

Onboard Intelligence
High-quality Imaging. High-quality Proof.
Built To Improve The Inspection Process
From capture in the field to review afterward, TOPseven SIGHT is designed to make the full inspection workflow more reliable.
Works across your fleet.
Inflight calibration recognises blade position, blade tip, and turbine geometry automatically. No pre-configuration required for each turbine type.
Unknown conditions?
Stay in control.
When contrast shifts or light conditions change, additional sensing keeps focus and brightness stable. The image set stays usable throughout.

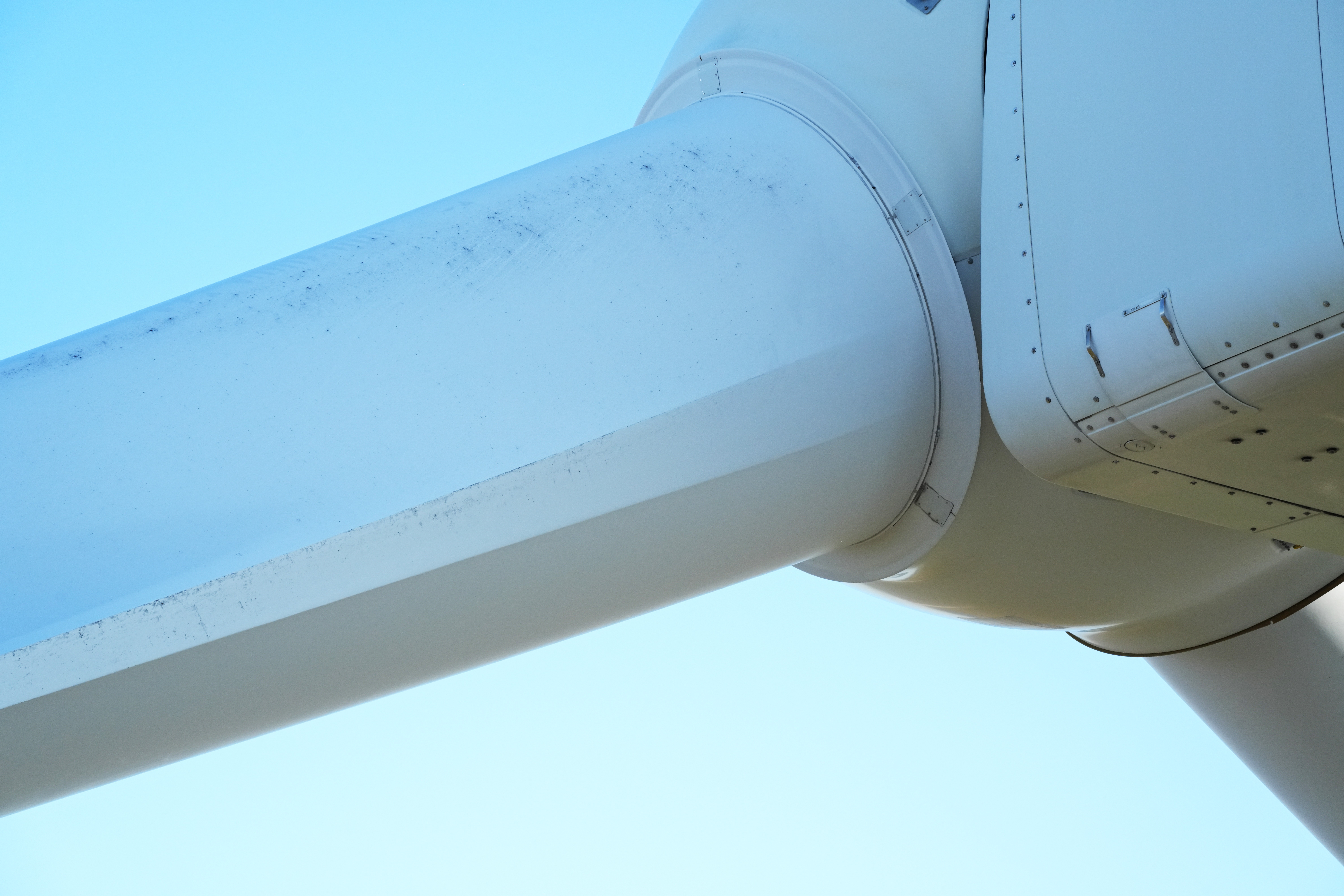

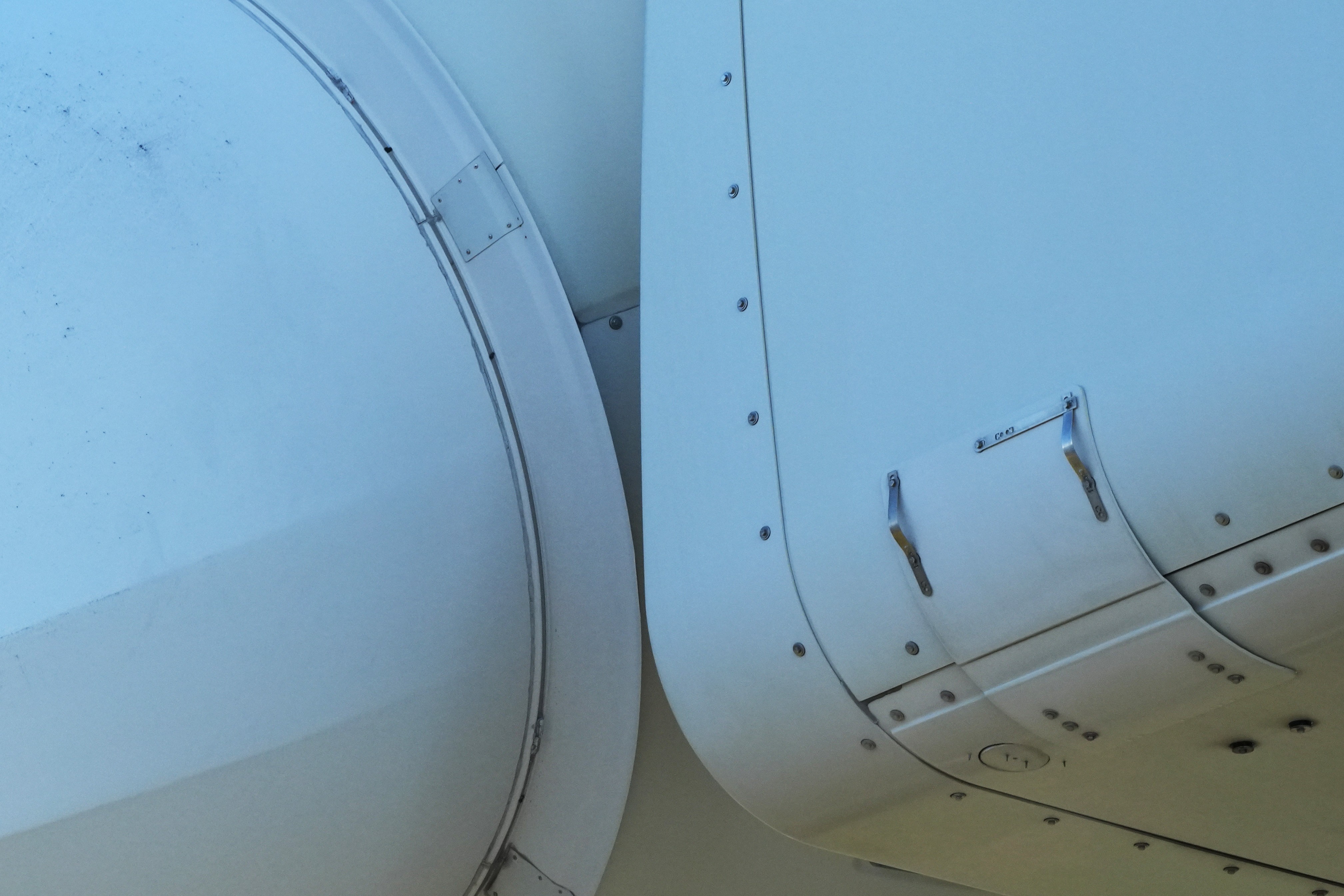

100% Crop. Safety-critical Clarity.
When a maintenance decision depends on what the camera can actually resolve, image quality stops being a specification. It becomes evidence.
Stronger on its own. Even stronger in the workflow.

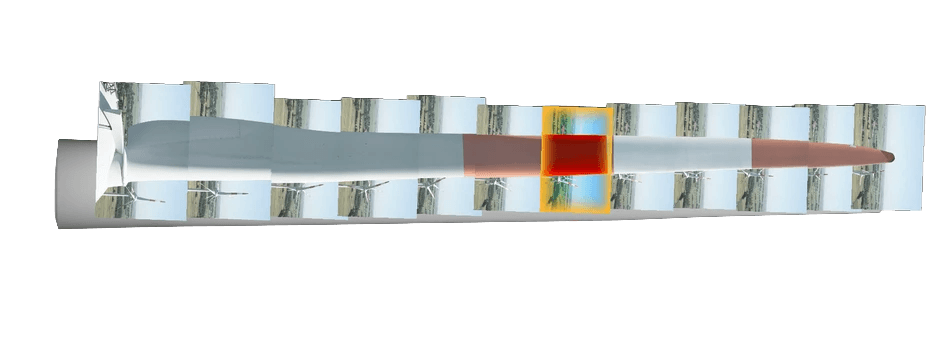

SIGHT is built as a high-performance inspection sensor first. But its full value expands when integrated into the TOPseven workflow. Additional sensors support inflight calibration, more stable autofocus, and more consistent capture across the asset. The result is faster flights, cleaner stitched outputs, and a more reliable handoff into inspection review.
Specifications
General
1050g with lense and gimbal
190 x 170 x 170 mm with gimbal
IP55
-20°C to +50°C
DJI M350, DJI M400, TOPseven Drone
7.8 W (in-video stream), 20 W (in continuous shoot)
Camera
35mm full frame Exmor R CMOS sensor
61 MP, 9504 x 6336 pixels
E-mount
AF-A (automatic AF), AF-S (single shot AF), AF-C (continuous AF), DMF (direct manual focus), manual focus
Gimbal
Removable
Pitch +30° to -120°, Yaw: +320° to -320°
±1°
Microcomputer
Dual Cortex-A72, 1.5GHz and quad Cortex-A53, 1.0GHz
4 GB
eMMC up to 128GB
Dual band 2.4/ 5GHz WiFi and Bluetooth 5.0
External Drive
Up to 128GB
